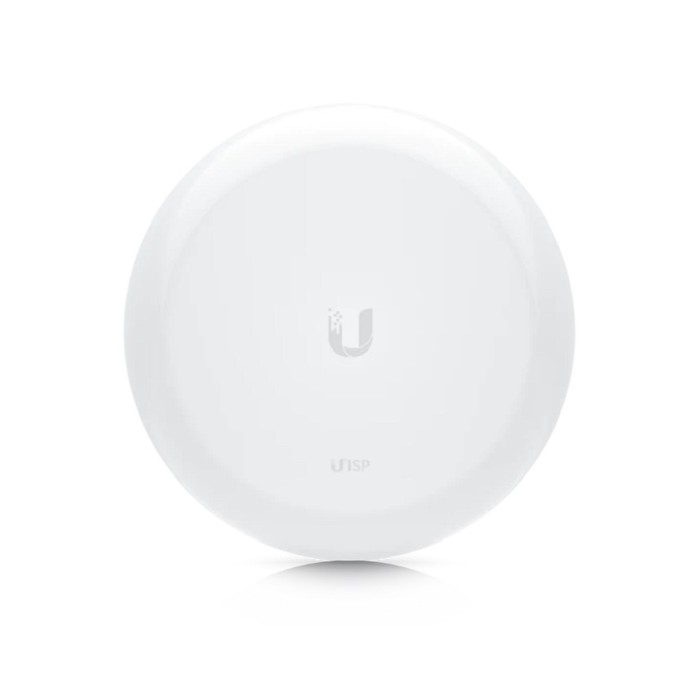

Ubiquiti AF60-HD Best price in Dubai UAE
Multi-gigabit, 60 GHz bridge with SFP+ support and a 2 km link range.
The airFiber 60 HD (AF60 HD) is a 60 GHz radio designed to create superior mid-range, point-to-point (PtP) links up to 2 km. The AF60 HD delivers low-interference, low-latency throughput within the 60 GHz spectrum. Compact and highly durable, the AF60 HD also features integrated GPS and a Bluetooth management radio to simplify setup, configuration, and monitoring. This bridge is ideal for ISPs looking to maximize signal linking with cost-effective equipment.
Features:
- Low-interference 60 GHz spectrum
- Up to a 2 km link range
- Supports channel bonding to achieve up to a 6 Gbps throughput rate
- (1) 10G SFP+ port
- Terragraph-certified
- Integrated GPS
- Link planning support via ISP Design Center
- Simple, Bluetooth-powered setup with the UISP® Mobile app
Ubiquiti AF60-HD Buy with Best Price from authorized supplier for Ubiquitiproducts in UAE Ubiquiti AF60-HD UISP airFiber 60 HD Distributor for Africa dsrtech.ae, Ubiquiti Dubai
Mechanical
Dimensions Ø189 x 89 mm (Ø7.4 x 3.5")
Weight Without mount: 1.8 kg (3.9 lb)
With mount: 2.95 kg (6.5 lb)
Enclosure materials Aluminum alloy, UV stabilized plastic
Mount material Stainless steel (SUS304)
Mount 60G precision alignment pole mount (included)
Wind loading 64 N at 200 km/h (14.39 lbf at 125 mph)
Weatherproofing IPX6
Hardware
Processor Quad-Core ARM® Cortex® A72 at 1.6 GHz
Memory 2 GB DDR4
Networking interfaces (1) GbE RJ45 port
(1) 1/10G SFP+ port
Button Factory reset
RF connections Internal
Max. power consumption 29.31W
Power method
Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-) or 2-Pairs (4, 5+; 7, 8-)
Power supply 48VDC, 0.65A gigabit PoE adapter (included)
Supported voltage range 48VDC ± 10%
Operating temperature -40 to 55° C (-40 to 131° F)
Operating humidity 5 to 95% noncondensing
Certifications FCC, IC, CE, terragraph
Ethernet Flashing blue: ethernet activity
GPS Blue: receiving at least (4) GPS satellite signals
60G Blue: active connection
System
Maximum throughput 60 GHz: 3.8 Gbps/6 Gbps (with channel bonding enabled)
Maximum range 2 km
Encryption WPA2-PSK (AES)
Uplink/Downlink ratio 50/50
Software
OS airFiber®
Modes PtP only
Services UISP, ping watchdog, web server, SSH server, NTP client, system log, device discovery
Utilities Beamform info, discovery utility, ping, trace route, speed test
Network Bridge mode
Wireless settings GPS sync
